Jukebox NSM V MP3 Kit
NSM series ES V-CD (requires V.1 upgrade EPROM)
Firebird II
Nostalgia
Nostalgia Gold
Nostalgia Gold II
Old Fashion Wizard
Performer Classic
Performer Grand II
Performer Wall
Solid Gold Wizard
NSM series ES V.1-CD with MBC III CD Changer unit
Country 2000
Digital Thunder
Digital Thunder Wall
Emerald Ice
Heritage
Juke 2000
Performer Grand 2000
Performer Wall 2000
Sapphire
Sapphire Midnight
Fast access, less than 1 second between tracks and a complete initialization in less than 30 seconds. This MP3 kit was developed to replace the complete CD changer unit in your NSM ES V.1 jukebox with the MP3 player. In just a few minutes, without modifying the jukebox. This kit simulates a CD player, so all the functions of the jukebox are retained.
The NSM5MP3 kit is a microcomputer controlled hard disk player that replaces the complete CD changer unit in your NSM ES V.1-CD technology jukebox.
The hard disk player works in all jukeboxes with the MBC III CD changer unit or when the ES-V.1 EPROM item no. # 178 238 is installed.
Unlike PC-based MP3 players, which require modification of the jukebox, require special software and operating systems and take far too long to boot up, the NSM5MP3 kit is connected directly to the jukebox control center and simulates the changer unit.
The trick is that the CD player appears to be there to control the jukebox. During operation, it is not apparent that an MP3 player is there. Except when quickly selecting a track, as the hard drive player is extremely fast.
The MP3 Kit NSM5MP3 works with any 44-pin ATA/IDE 2.5" hard drive of 2GB or larger. The ideal size for a 100 CD jukebox is 20 GB. This allows you to play up to 33 songs on each CD at the high quality bit rate of 192 kBits/s.
That's an incredible 3,300 songs on a player with dimensions of 76.2 mm x 127 mm x 20.3 mm H, WxDxH weight 0.23 kg.
The NSM5MP3 player works completely independently and does not require any additional hardware or software. Installation takes just a few minutes without having to rebuild the jukebox.

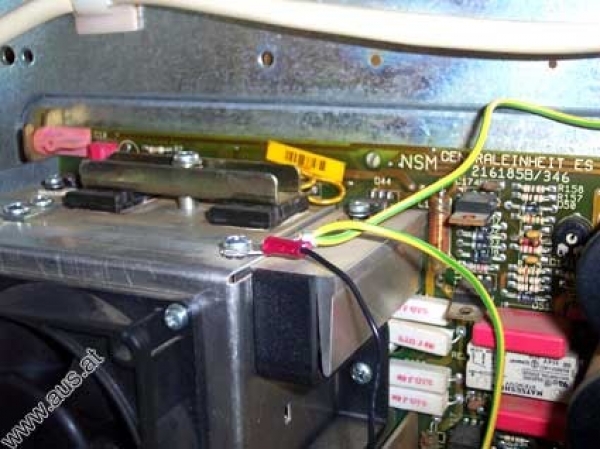

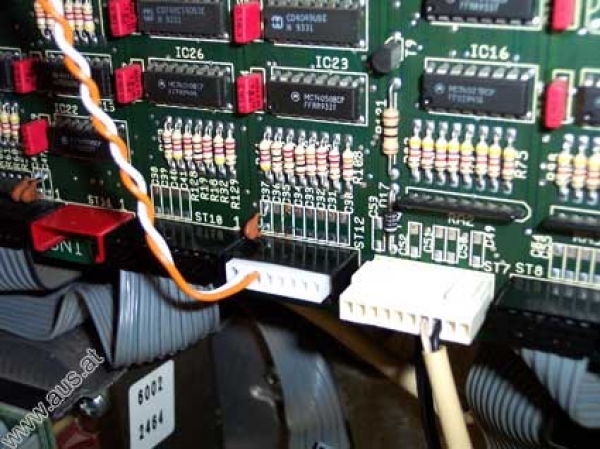

Only three connections are necessary, the 4-pin audio connection to the amplifier, the 8-pin communication plug to the control unit and the ground connection.

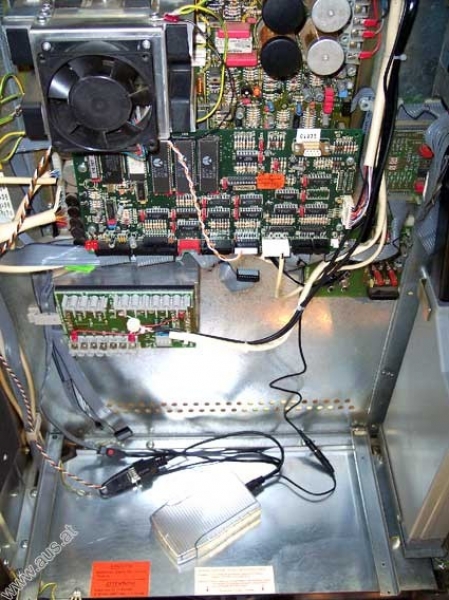

The hard drive player is so small that it can be placed on the CD changer unit, or You remove the changer unit because it is no longer needed.
The best thing about it - no maintenance - with this MP3 kit, playback errors, wearing parts,
error messages: Error 60 and 70 or cleaning the player are a thing of the past.
No delay when changing CDs, so continuous playback of the songs is guaranteed.
The hard drive is automatically switched off after a 30 second break
The MP3 player is supplied with its own power supply and therefore requires its own socket. If this is not available, have it installed by a specialist. With the adapter supplied, songs in MP3 format can be copied into the created folders on the hard drive. The 44-pin IDE adapter also allows the use of flash cards. Approximate capacity of the flash cards is: CF Size @128 Kbps @192 Kbps 512MB 128 102 1GB 250 200 2GB 500 400 4GB 1,000 800 8GB 2,000 1,600

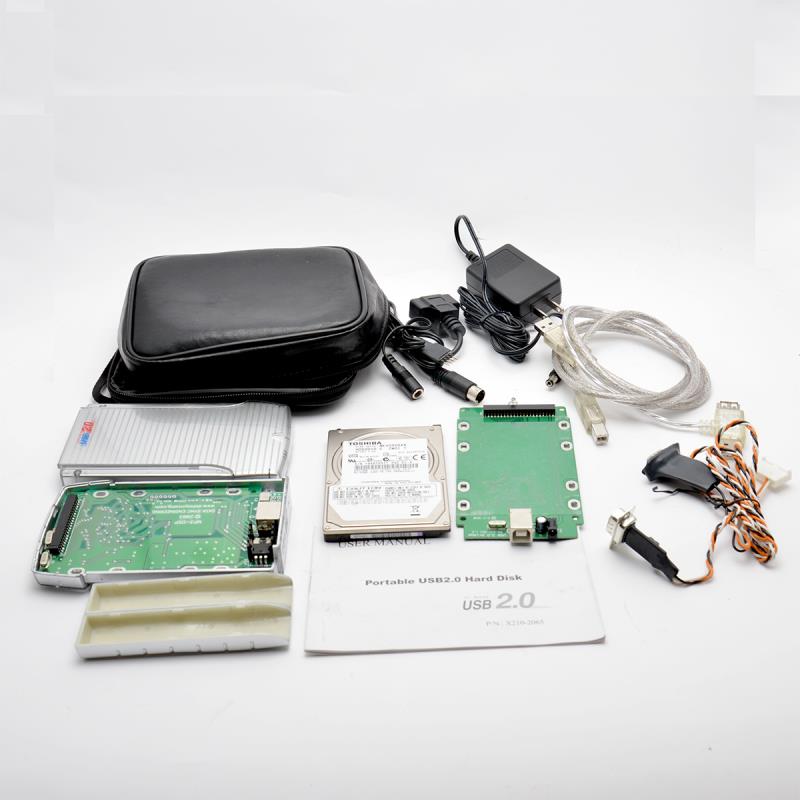

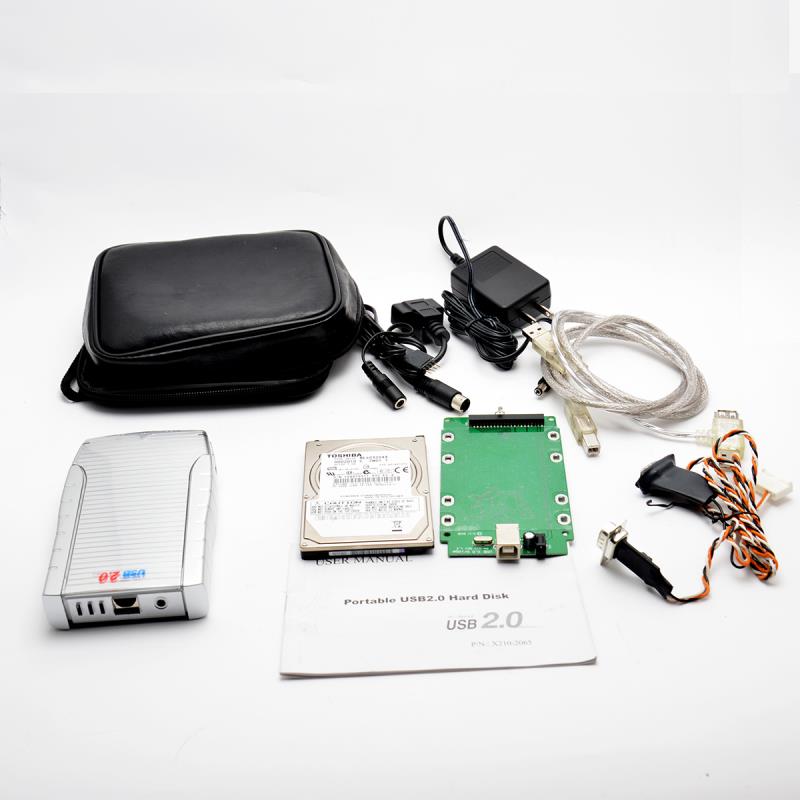

Contained in the scope of supply:
USB 2.0 external HDD circuit board
MP3-DSP digital music player circuit board
NSM interface cable
PC USB interface cable
Enclosure
Power supply Input:100-240 Volt Output: 6 Volt 2.0 Ampere
PC USB software
Storage pouch
Installation Manual
Hard disk 40GB 2 1/2"
Hint:
Disclaimer - Please Read The NSM V Kit is an aftermarket product that replaces the original CD player unit in your jukebox. The player is a "direct plug-in" upgrade that uses a hard drive to store phonorecords or recorded musical compositions. The hard disk MP3 conversion kits are developed for jukebox owners for non public performance use. We do not supply jukebox licenses.
Technical data:
see at the manual
