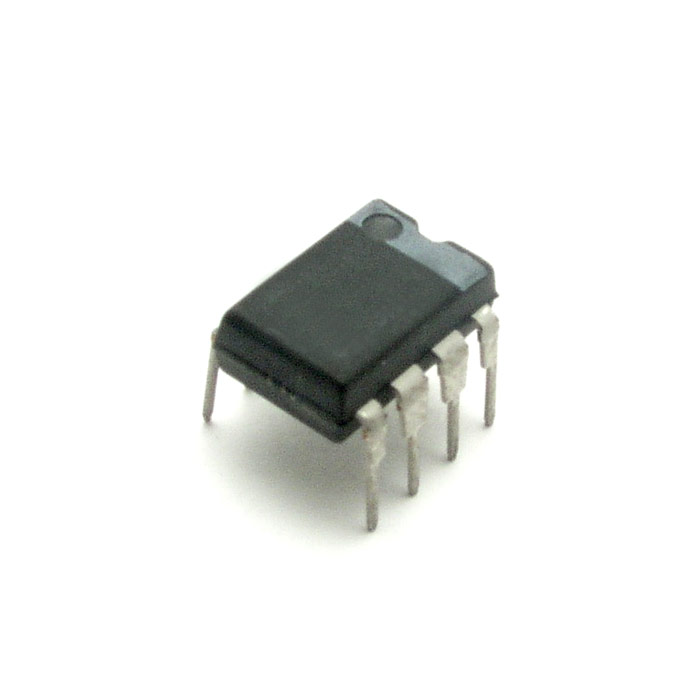

12F508-I/P 8-Bit-PICmicro Mikrocontroller 0,768 KB 4 MHz
PIC12F508 8-bit Flash Microcontroller High Performance RISC CPU:
• Only 33 one-word instructions to learn
• All 1-cyclic instructions with the exception of the program branches, which are 2-cyclic
• 12-bit wide instructions
• 2-tier deep hardware stack
• Direct, indirect, and relative addressing modes for data and instructions
• 8-bit wide data path
• 8 special function hardware registers
• Operating speed:
- DC - 4 MHz clock input - DC
- 1000 ns instruction cycle
Special microcontroller properties:
• Internal 4MHz Precision Oscillator: Factory calibrated to ±1%.
• In-Circuit Serial Programming™ (ICSP™)
• In-Circuit Debugging (ICD) support
• Power On Reset (POR)
• Device Reset Timer (DRT)
• Watchdog timer (WDT) with dedicated on-chip RC oscillator for reliable operation
• Protection of programmable code
• Multiplexed MCLR input pin
• Internal weak pull-ups on I/O pins
• Energy-saving sleep mode
• Wake-Wp from sleep when changing pins
• Selectable oscillator options:
- INTRC: 4MHz Precision Internal Oscillator
- EXTRC: External low cost RC oscillator
- XT: Standard Crystal/Resonator
- LP: Energy-saving, low-frequency crystal low-power
Functions/CMOS technology:
• Operating Current: < 175 µA at 2V, 4MHz, typical
• Standby current: 100nA @ 2V, typical
• Low-power, high-speed flash technology: 100,000 flashes, > 40 years durability
• Completely static design
• Large operating voltage range: 2.0V to 5.5V
• Wide temperature range:
- Industrial: -40°C to +85°C
- Extended: -40°C to +125°C
Peripheral Features (PIC12F508/509):
• 6 I/O pins:
- 5 I/O pins with individual direction control
- 1 input pin only
- High current sink/source for LED direct drive
- Wake-on-Change
- Weak pull-ups
• 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler General Type 8-bit microcontroller Technology PIC® Flash model PIC12F508 Version 1-WDT, ICSP Type PDIP-8 Memory 512x12 Special features CPU clock 4 MHz
Version Memory 0.75 kbytes
RAM 0.025 kbytes
I/O pins 6 8-bit timers
1 internal oscillator 4 MHz electrical values
Supply voltage +2.0 ... +5.5 VDC
Miscellaneous Temperature range -40 ... +85 °C
Manufacturer information Manufacturer MICROCHIP
Manufacturer part number PIC12F508-I/P
Packing weight 5.0E-4 kg
RoHS compliant EAN / GTIN 9900000581084
