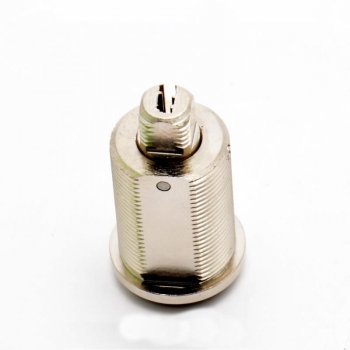

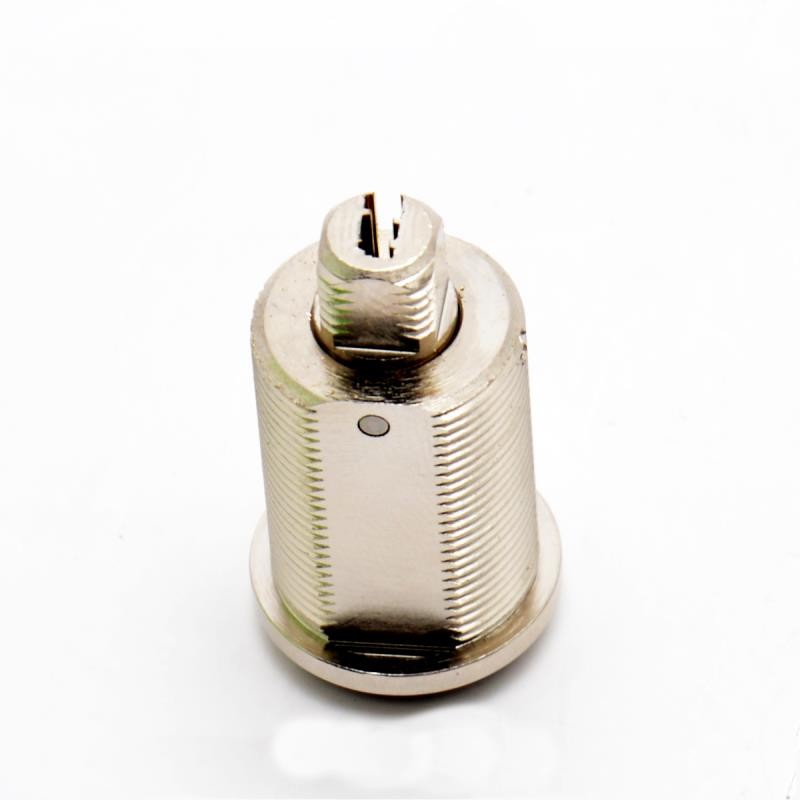

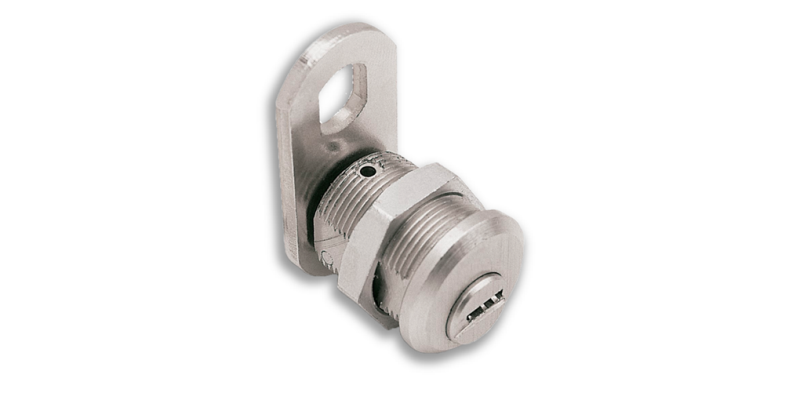

Cam Lock  Mini plus MlO KD 90 ° Turn

Security lock security class S3 with different keys. Masterkeyable for up to 500 units per master. Up to 46.656 different codes.

Characteristics:
• Length 20 mm: 6 pins, thicknesses of up to 15 mm. Masterkeyable for up to 500 units per master. Up to 46.656 different codes.
• Length 26 mm: 8 pins, thicknesses of up to 23 mm. Masterkeyable for up to 1.700 units per master. Up to 1.679.616 different codes.
• Nut-mounted.
• 2 nickel silver dimple reversible keys included.
• Other diameters, lengths and degrees also available.
• Central rotor.
• Multi keyway system.
• Cam mounted with M10 x 1 nut.

Lieferumfang:
Lock
2 nickel silver dimple reversible keys included

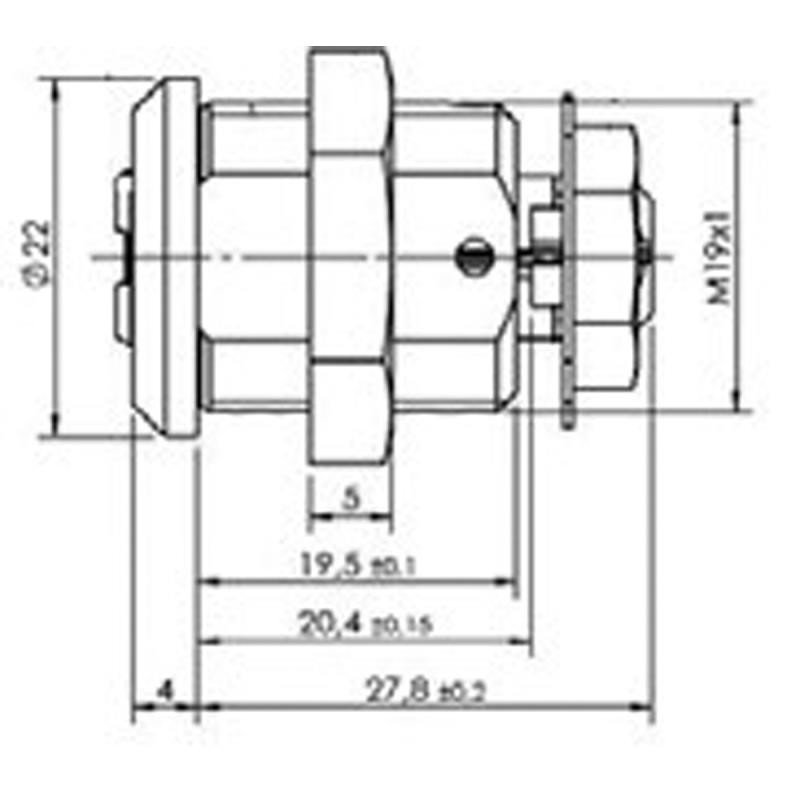

Dimension:

Lenght 20 / 26  mm
Diameter 19.1/ 16.1 mm
Diameter thread bolt for cam 6.1/8.1 mm
