Round Key Lock KD

Product No.:: 9930100414-9930100414-05
Shipping time:: approx. 9-13 days (abroad may vary)
Weight:: 0,0144 kg per pc(s).

Schlosslänge:

This combination is not in stock.
The quantity entered will be supplied by us very soon.

Sliding scale prices

1-4 pc(s).: per 16,95 EUR
5-9 pc(s).: per 16,45 EUR
10-49 pc(s).: per 15,95 EUR
> 49 pc(s).: per 15,45 EUR

16,95 EUR

incl. 20% tax excl. Shipping costs

pc(s).:

Add to wish list

Price offer

Ask about product

Description

Round Key Lock KD

With the Series 28D, the good security and excellent key control provided by patented ‘Octagon’ mechanism is achieved at a very competitive price by using die-cast alloy components. The 7 pin mechanism offers over 500,000 different key combinations and an anti-drill centre to provide added security. Available in 18mm, 25mm and 30mm body lengths, all finished in polished chrome.
Key registration is available for keyed alike suites, to offer you optimum key control.
Supplied with a body nut and a Nyloc type tail nut. Keyed to differ locks are supplied with two keys per lock, as standard.

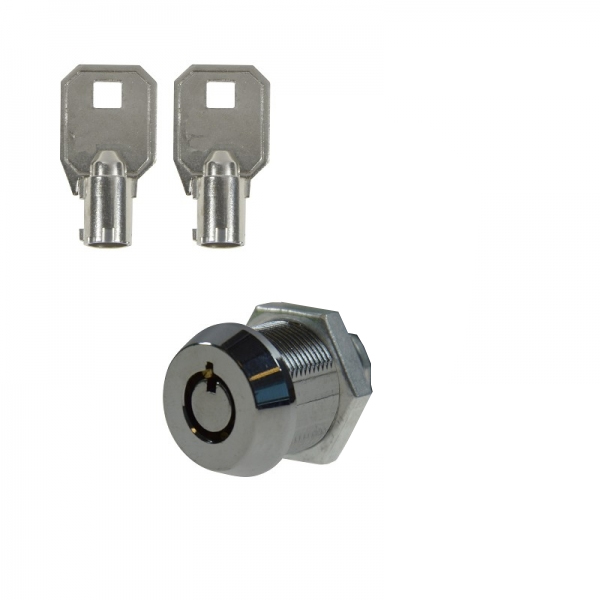

Contained in the scope of supply:
- 1 Lock
- 2 keys (keyed different)

Technical data:
Security class S1

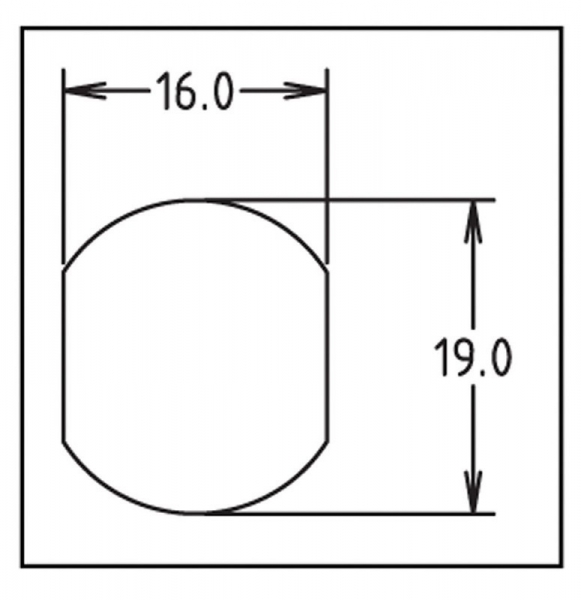

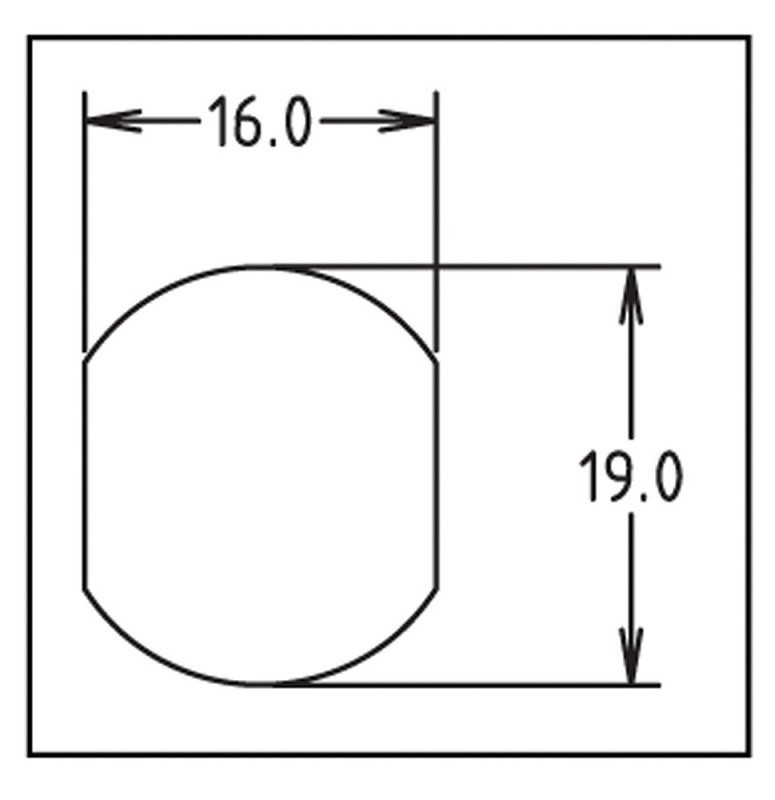

Hole for Cam 7x5 mm
Lenght:
Weight: 0,090 kg
