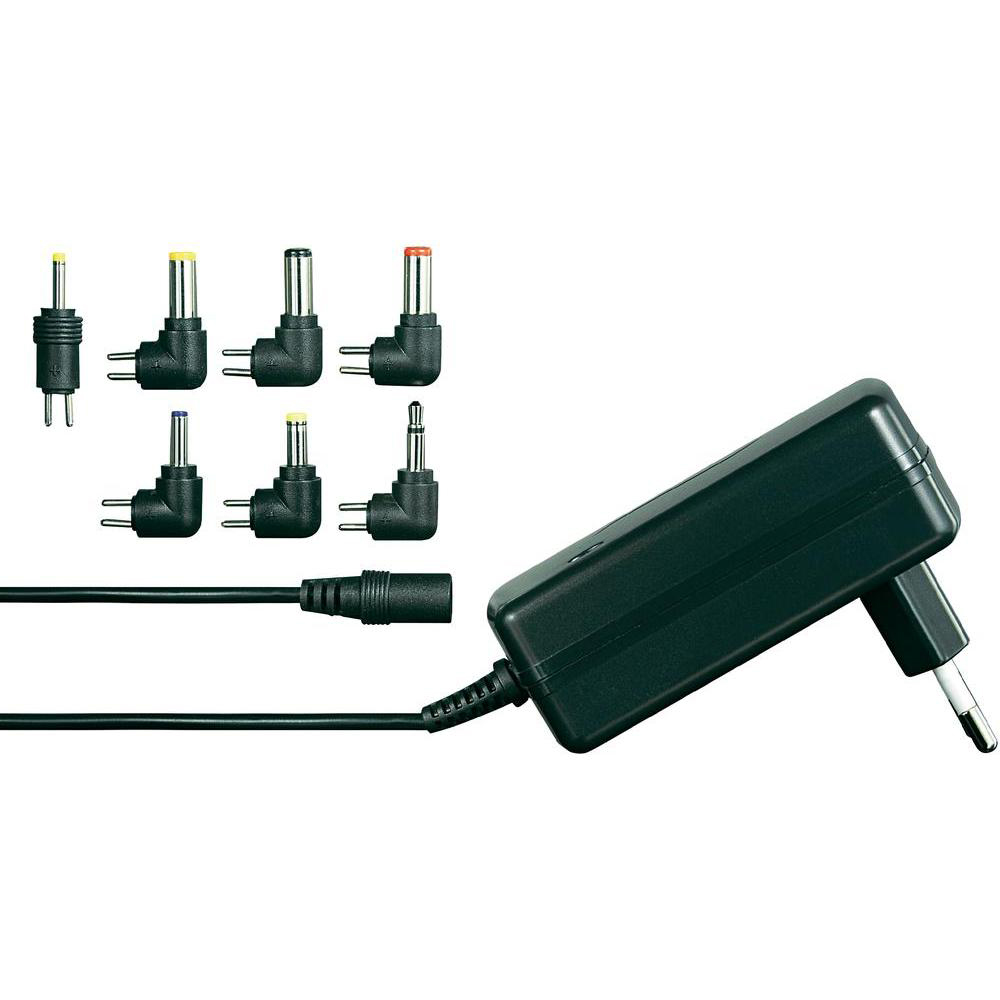

Plug in Power supply 9 up to 24V 1500mA
Compact power supply with stable adjustable output voltage.Universally usable for many devices as replacement or secondary power adapter. The exchangeable output plugs are protected against reverse polarity. Ideal for small loads such as handheld computers, wireless routers, CD Player, Mini TV, etc.
Ausstattung
Adjustable output voltage: 9/12/15/18/20 and 24 V / DC
Overload protection and short circuit protection
3.5 mm jack
6 hollow connectors (outside-/inside -Ø/lenght in mm):
5,5 /1,5 / 12
5,5 /2,5 / 12
5.5/ 2.1 / 12
4,0 /1,7/ 9,5
3,5 /1,4 /10
2.35 / 0.7 / 10.5
Scope of delivery
3.5 mm jack
6 hollow connectors (outside -/inside -Ø/lenght in mm): 5,5 / 1,5 / 12, 5,5 / 2,5 / 12, 5,5 / 2,1 / 12, 4,0 / 1 , 7/9, 5, 3.5 / 1.4 / 10, 2.35 / 0.7 / 10.5
Manual
Specifications
Output Current 1500 mA
Output voltage of 9 V / DC 12 V / DC 13.5 V / DC 15 V / DC 18 V / DC 20 V / DC24 V / DC
Dim. (L x W x H) 85 x 50.5 x 50.5 mm
Switching Type
Weight 180 g
Power 24 W
Input voltage 100 -240 V / AC
