Push Button square 51x51mm with illumination

Name: Push Button square 51x51mm with illumination
SKU: 2390000227
Price: 14.95 EUR
Availability: InStock
Rating: 4 (1 reviews)

Product No.:: 2390000227-2390000227-02
Shipping time:: on stock - approx. 1-3 days (abroad may vary)
Stock:: 53 pc(s).
Weight:: 0,0516 kg per pc(s).

2390000227-Farbe:

Sliding scale prices

1-4 pc(s).: per 14,95 EUR
5-9 pc(s).: per 14,85 EUR
10-24 pc(s).: per 14,75 EUR
> 24 pc(s).: per 14,65 EUR

14,95 EUR

incl. 20% tax excl. Shipping costs

pc(s).:

Add to wish list

Price offer

Ask about product

Description

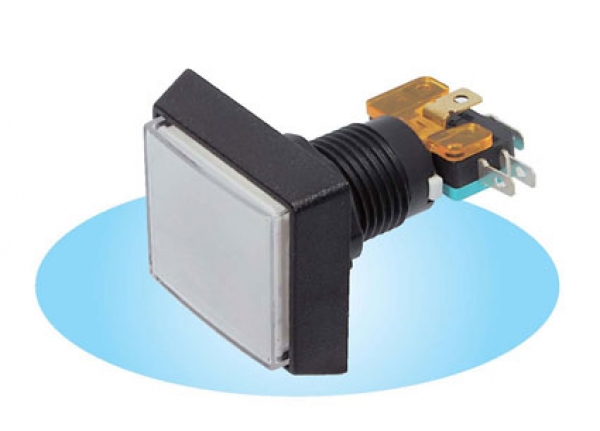

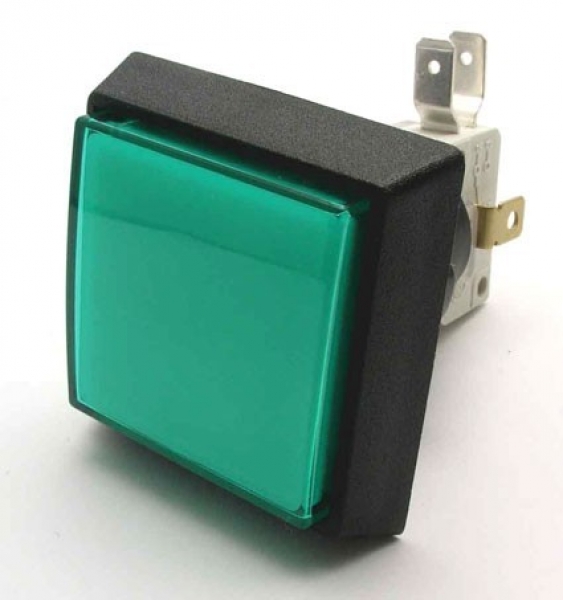

Push Button square 51x51mm with illumination

Push button with micro switch and LED or lamp illumination. The new 'Easy Twist System' prevents knock out of the lamp holder, this locks securely through a quarter turn in the holder. For installation and lamp replacement, the holder can be easily removed without tools.

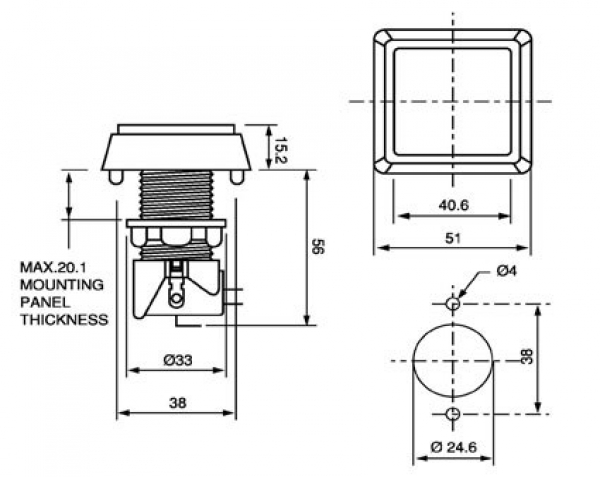

Technical specifications:
Dimension button outside: 51x51mm
Lens cap: 40.6 x 40,6 mm
Diameter button thread: 24.6 mm
Microswitch with 6.3mm plug solder connection
Lamp 12 Volt T10
Weight: 0.043 kg
Specification:
IP40 UV resistance: Uvresistent94
Life microswitch: <200 000 operating activities
Mechanical life: <10 million actuations
Operating temperature: -30 to + 50 ° C
Contact resistance> 30Mohm
Insulation resistance <100MOhm at 500VDC
Operating force: 30 to 400gf
Key travel: 1.5mm
Switch Type: Currently
Material:
Bracket: ABS 77
Lens Cap: PC
Label tags: ABS
Actuating ram: PCM
Lampholder: PCM
Spring: SWP
Switch Case: PBT Resin (UL94-V0)
Contacts: silver plated brass
