Illuminated Push Buttons 52x35,5 mm rectangular Low Profil

Name: Illuminated Push Buttons 52x35,5 mm rectangular Low Profil
SKU: 2390000100
Price: 9.95 EUR
Availability: InStock
Rating: 5 (2 reviews)

Product No.:: 2390000100
Shipping time:: (abroad may vary)
Stock:: - pc(s).
Weight:: - kg per pc(s).

2390000100-Farbe:

Sliding scale prices

1-2 pc(s).: per 9,95 EUR
3-4 pc(s).: per 9,80 EUR
5-9 pc(s).: per 9,65 EUR
10-24 pc(s).: per 9,50 EUR
> 24 pc(s).: per 9,35 EUR

9,95 EUR

incl. 20% tax excl. Shipping costs

pc(s).:

Add to wish list

Price offer

Ask about product

Description

Illuminated Push Buttons 52x35,5 mm rectangular Low Profil

Modular pushbutton from ABS / Nylon. Individual labeling, by inserting a foil between lens cap and legend plate.

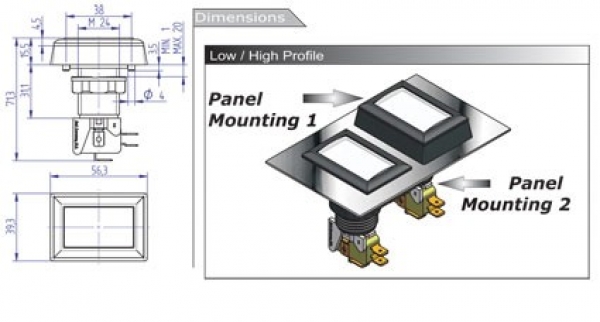

Optional mounting with two profile heights.
T10 Lamp socket with holder microswitch with changeover
No tools for service and installation work needed. Resistant to environmental influences and rough handling.

Applications:
Machine control, gaming and entertainment machines, vending machines, self-service machines, hobby, etc.
characteristics
Robust design
Secure mounting
Great variety of colors.
Lighting with LED or lamp T10.

Options:
with Clip System (ECS) available.
Standard microswitch with 6,35x0,4 or 6,35x0,7 or 4,75x0,7 Solder-in connection

Technical specifications:
Standard plug-in system
Standard lamp holder with standard microswitch
Lamp holder for T10 lamp or LED
Microswitch with changeover, used as a rest, make contact or switch

Note:
Please on this button to order the lower part and lamps separately.
