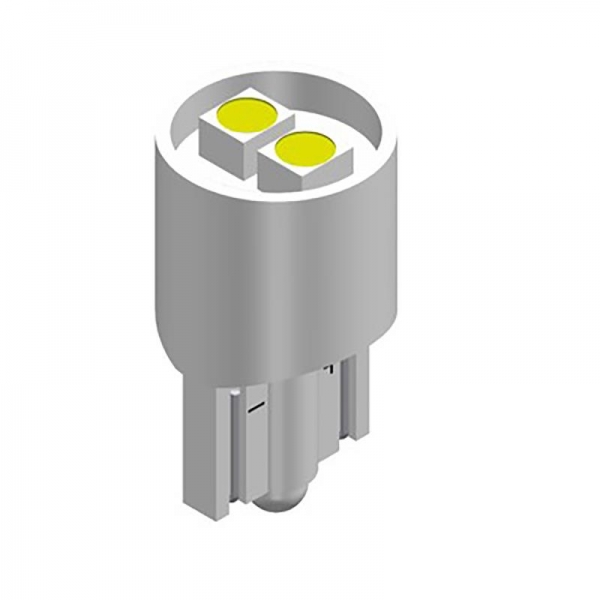

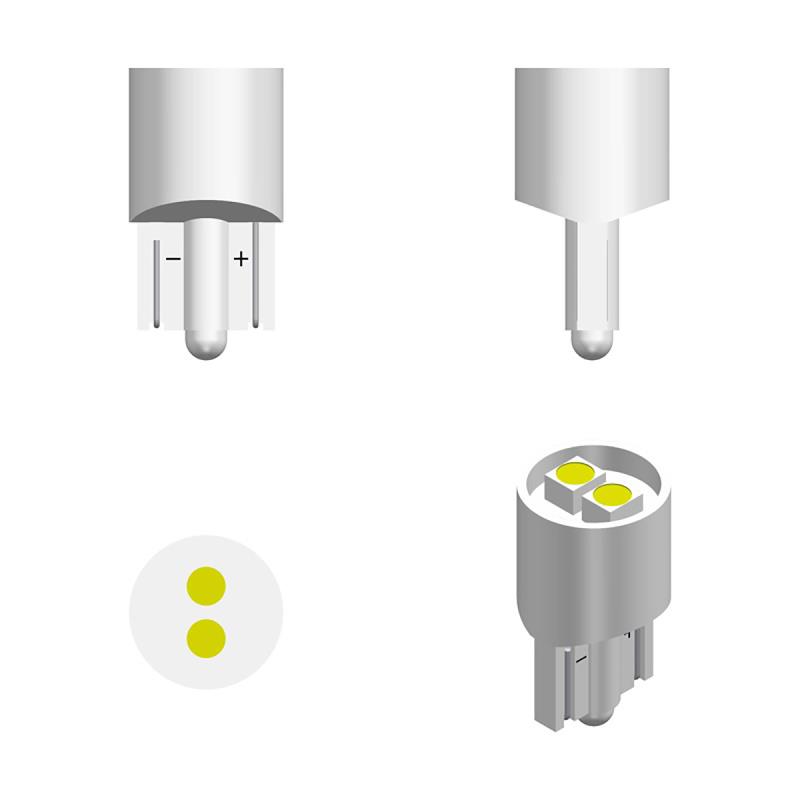

LED with T10 wedge base socket 12 Volt
This LED replaces T10 wedge base lamps 12 Volt.
Features
Low current requirements.
High Light Output.
Higher Reliability Vibration and Shock Resistance.
This LED replaces T10 wedge base lamps 12 Volt.
Electrical/Optical Characteristics
Ta= 25°C
Forward Voltage f Min 12.0 VDC Luminous Intensity (Vf =12V) I v Min 3800 mcd Typ 4000 mcd
Forward Current f 19.5 mA
Color Temperature C 7000--8 000K
Power Dissipation d 234 mW
Operating Temperature op -30 ~ +65 ℃
Luminous flux 14 lm
Storage Temperature sto -40 ~ +100 ℃
Viewing Angle 120°
Materials
Poly carbonate FR4 ø 8.6mm*1.2 mm.
Wedge Holder
Resistor LED PCB 3528 Type SMD White LED lamp T35281-JG-CI6D-00
2 Resistor (each is 154Ω, 0.25WS MF) 3-All dimensions are in millimeters.
Notes:
1-This device is bi-polar.
2-Endurable marking with polarity and 12VDC

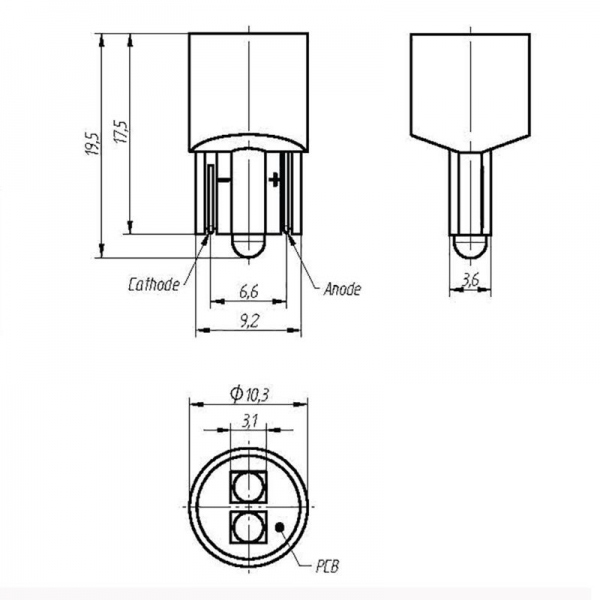

3-All dimensions are in millimeters.
