Connection HUB 4

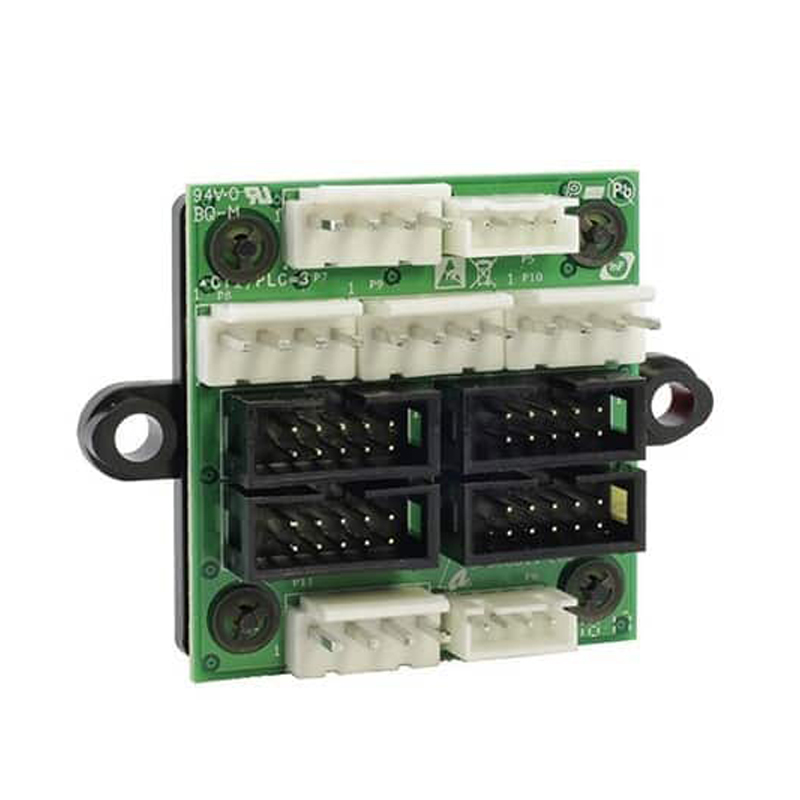

The ccTalk hub board P4, through the balanced distribution of the connections, has the following advantages: Razionalise and balance the power distribution in the machine Simplify the cabling phase of the system (power unit, control board, coin selector, validator, note recycler and coin hoppers) Thanks to the star connection it allows, the power is distributed in a balanced way, even in the event of any surge of electrical current. In fact, the request of any extra power from one peripheral will come to the power unit directly without affecting the working of all the remaining peripherals. This way, the result is a substantial improvement of the overall machine efficiency.

TECHNICAL SPECIFICATIONS
Size 50x50x20,5 mm
Weight 28,80 g

INPUTS
Power supply and ccTalk data 1×4
pin: 12V / 24V

OUTPUTS
Coin selector 1×4 pin: 12V
Note validator 1×4 pin: 12V / 24V
Coin hoppers 2×10 pin: 24V
Counter hopper 1×10 pin: 24V
Available 1×10 pin: 24V
Available 3×4 pin: 12V / 24V Available 1×4 pin: 12V
