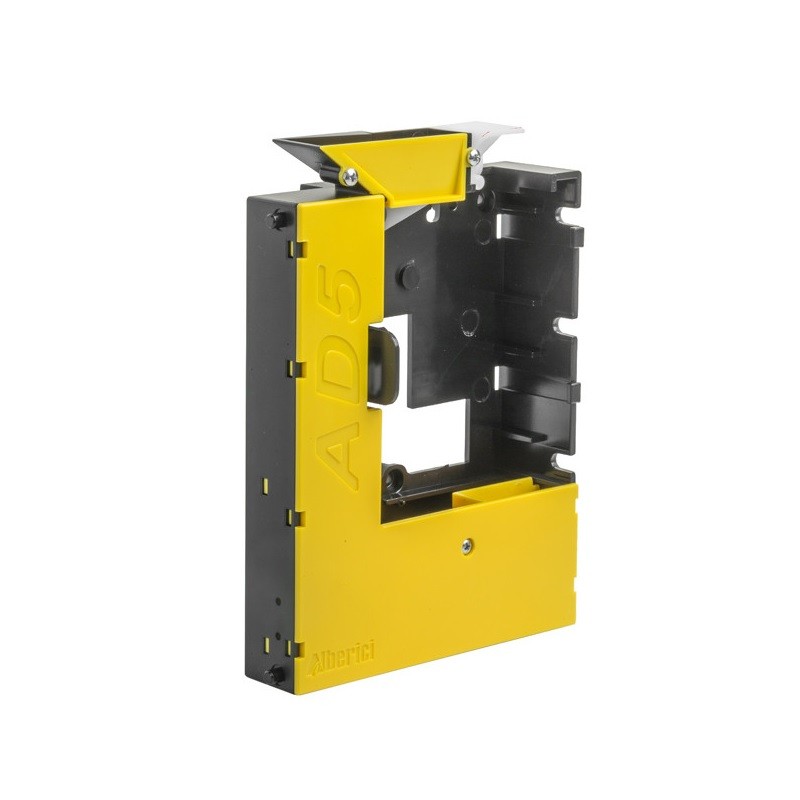

5" coin acceptor adapter
The adaptor allows the 5’’ ¼ coin selector to be replaced by the 3’’ ½ selectors. It can accept any S model (i.e. AL66 S or AL55 S) with upper reject lever. On demand, supplied with electronic reject motor which is essential when the coin selector is located far away from the coin entry Request the 16-pole adapter option to provide further pliability to typical vending applications Many available combinations (versions)
Variant 3 ways coin sorter
Variant 5 ways coin sorter
Electronic reject kit
10 pin /16 pin Adapter
Size 64 x26.6x92,5 mm
Weight 0.120 Kg
Available versions Size Weight
AD5 - - 128x46x170 mm 149 g
AD5 - + Remote reject kit 128x46x230 mm 249 g
AD5 - + Remote reject kit and 16p adapter 128x46x230 mm 162 g
AD5 + Variant 3-way - 128x77,5x170 mm 318 g
AD5 + Variant 3-way + Remote reject kit 128x77,5x230 mm 331 g
AD5 + Variant 3-way + Remote reject kit and 16p adapter 128x77,5x230 mm 418 g
AD5 + Variant 5-way - 128x77,5x170 mm 367 g
AD5 + Variant 5-way + Remote reject kit 128x77,5x230 mm 380 g
AD5 + Variant 5-way + Remote reject kit and 16p adapter 128x77,5x230 mm 467 g
