Coin comparator

General characteristics

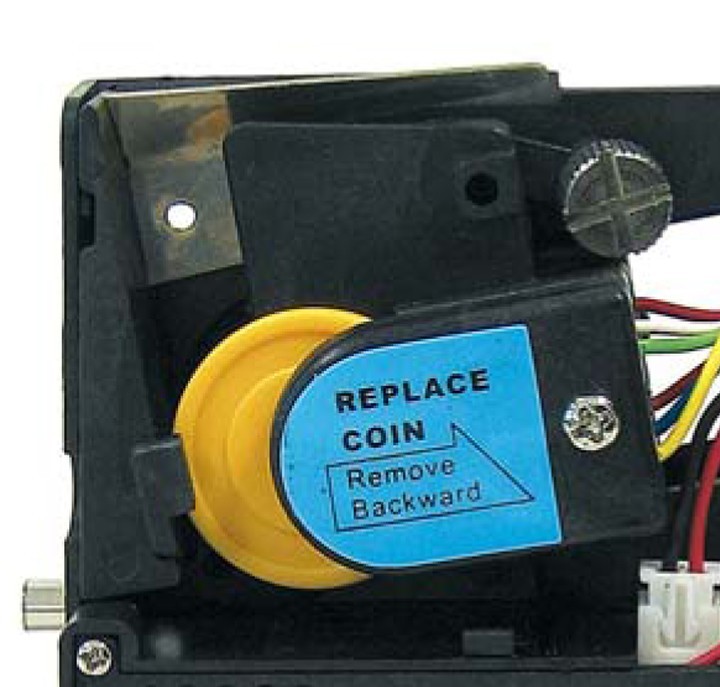

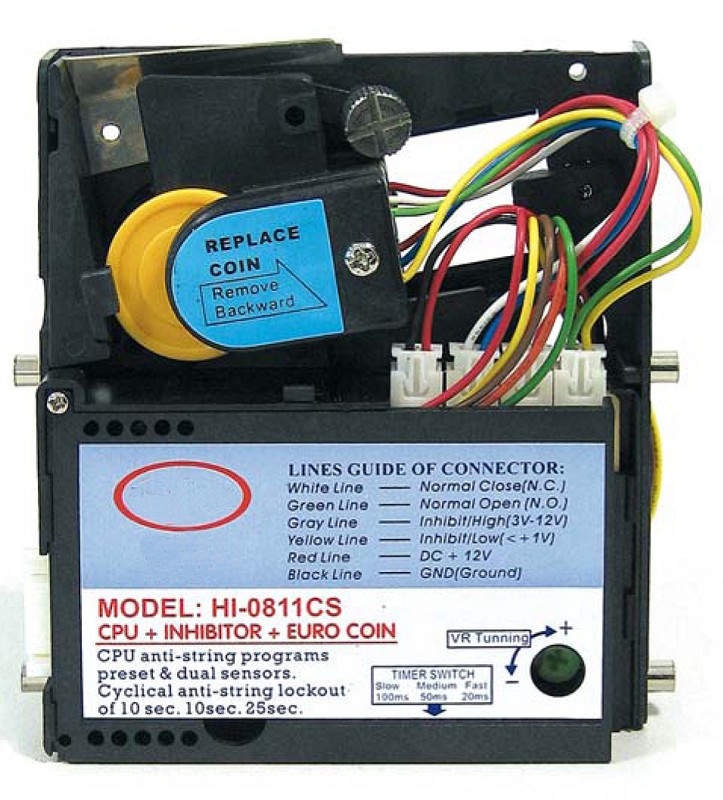

It selects one coin or token by the electronic comparison of the sample.Highly reliable. The fixing points, designed according to international standards, ensure ease of application also on operating machines. The sturdy electric circuit accurately compares the characteristics of the introduced coin with the characteristics of the sample. The electronic recognition is based on diameter, thickness and material of the introduced sample. Extremely user-friendly.Sliding coin comparing arm for an easier sample change. New version with special coil for euro coin recognition and inhibition.
Scoop of supply
Harness Instruction
Technical characteristics:
Introduction 1 coin or 1 token
Recognized euro coins 0,05 - 0,10 - 0,20 - 0,50 - 1,00 - 2,00
Selection electronic sample comparison

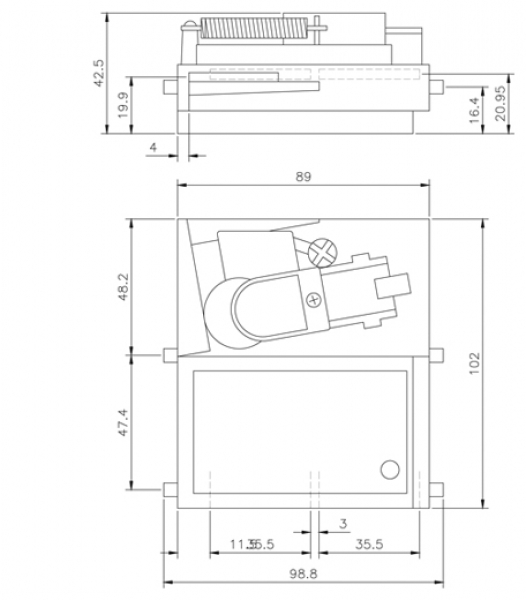

WxH 89 x 100 mm thickness 44 mm
Weight: 0,20 kg
Power supply 12 Vdc ± 20%
Absorbed current 200 mA a 12 Vdc (acceptance) Input 150 mA
Sample size (mm) ø 18 ÷ 31 thickness 1,2 ÷ 3
