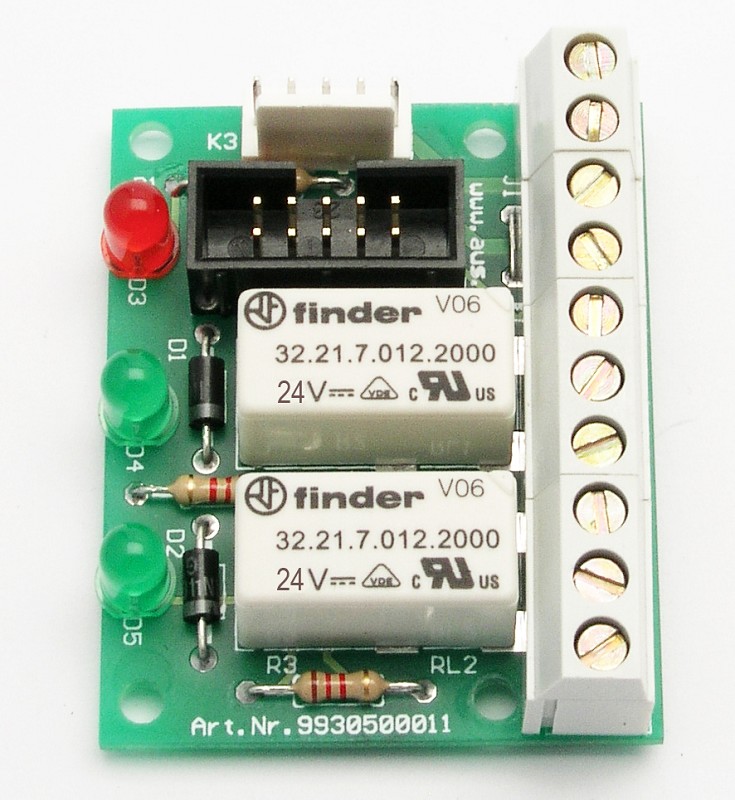

Relay interface board 12 or 24 Volt

With this relay pcb you can simply realize different applications with an electronic coin validator. Depending on configuration of the electronic coin validator you can contact potential free both relays contacts for timing circuits, expenditures for impulse, sales procedures use etc. with two prices.

Function:

As replacement for mechanical coin validator with electronic coin validator:

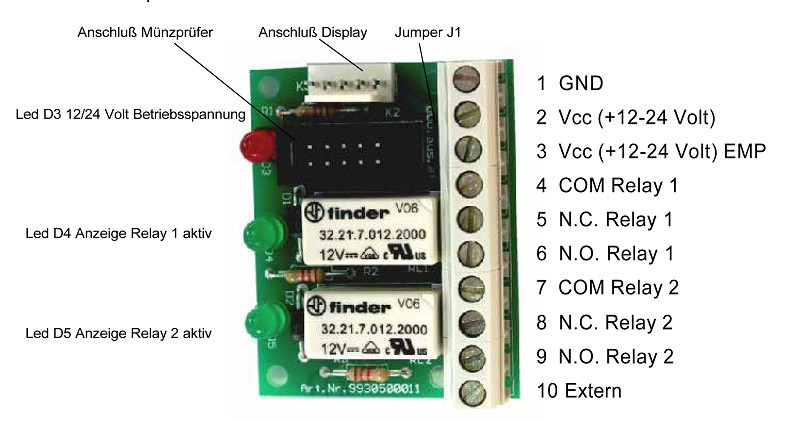

1) Supply voltage to Pin1 (GND) and pin 2 (+12 or 24Volt) attach.
2) The electronic coin validator (RM4/5, type 20 or 30) is attached directly to 10 pin plug.
3) the exits of the Relay 1 (pin 4.5 and 6) the contacts of the coin switch which is omitted now replace.
4) the exits of the Relay 2 (pin 7.8 and 9) knows for the time warning or as selling price 2 depending upon configuration of the coin validator to be used.
5) The connection 10 is intended for the external release (see manual RM5)
6) The bridge J1 far away can by an external switch those Tension of the coin validator for RESETs of purposes to be switched off.

Equipment:

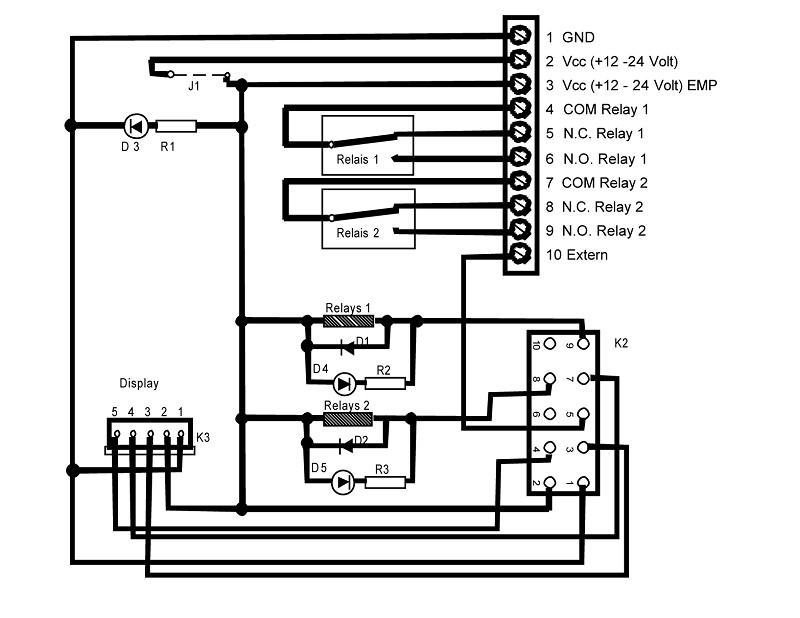

contain in the scope of supply: electr. wiring diagram

Technical data:

Contact specification Relay
Contact configuration 1 CO (SPDT)
Rated current/Maximum peak current A 6/15
Rated voltage/Maximum switching voltage V AC 250/400
Rated load AC1VA 1,500
Rated load AC15 (230 V AC) VA 250
Single phase motor rating (230 V AC) kW 0.185
Breaking capacity DC1: 30/110/220 VA 3/0.35/0.2
Minimum switching loadmW (V/mA) 500 (10/5
Standard contact material AgCdO
Measures: L 51 mm x B 41 mm x H 17 mm
Weight approx. 0.032 kg
Warranty: 2 years
