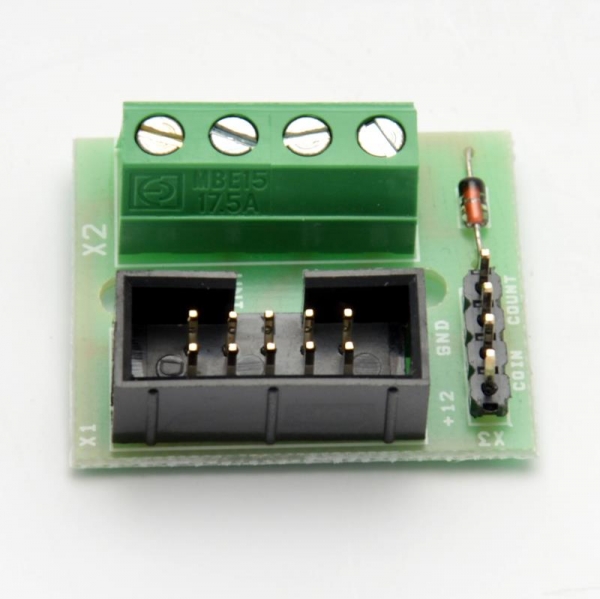

Interface for electronic coin mechanism 1 output Pin 5 Out 7 Totalizer

With this interface board you can connect coin validators in the totalizer variants that use output 7.
Simply use the 4-pin screw terminal strip to connect and plug in the 10-pin ribbon cable to the coin validator.
Connection for electromechanical coin counter
Compatible with the following versions: 5397000049, 5397000050

Technical specifications:
Dimensions: 25.2 x 30.3 x 14.8mm
Weight: 0.011kg

Interface for electronic coin mechanism 1 output Pin5 Out 7 Totalizer
Connections:
X1 10 pin connector: for coin validator connection
X2 4-pin screw terminal:
+ 12 volts
Inhibit (release coin validator) is switched to GND
ACC output coin validator Pin5 (Out 7 Totalizer)
GND Ground
X3 4 pin header
+12 volt coin counter
Output coin counter
GND
Output coin counter
