Interface for electronic coin mechanism 1 output

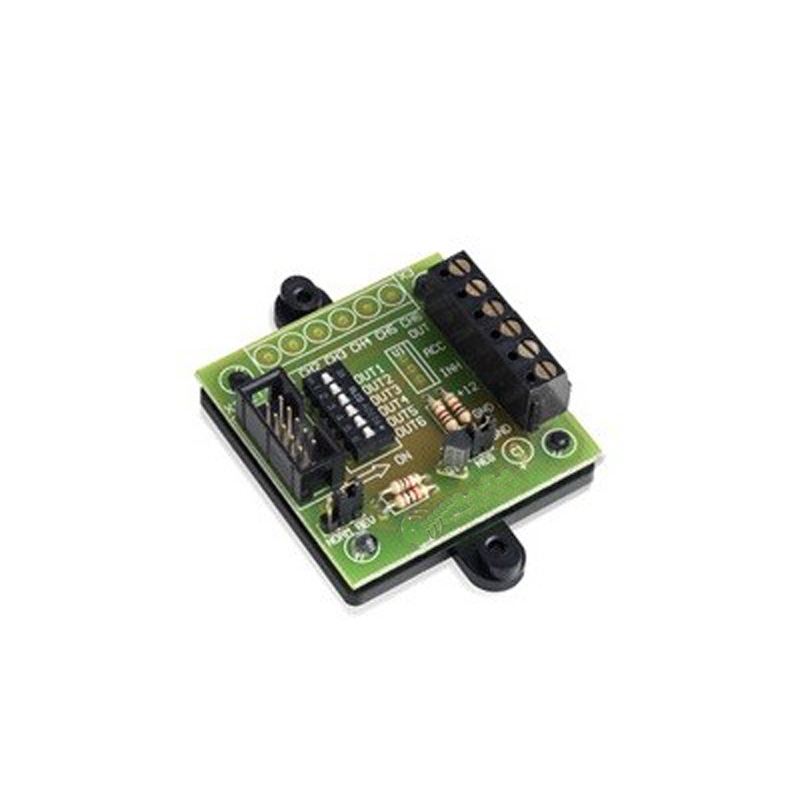

Adapter circuit board for electronic coin validator with 1 output channel selectable via DIP switch.
Selectable output channel and jumper to select the inhibit signal (Inhibit) (AL031l).

With this interface board you can connect all coin validator variants and select the output channel of the coin validator with the 6-way DIP switch.
Simply use the 6-pin screw terminal strip to connect and plug in the 10-pin ribbon cable to the coin validator.
Compatible with the following versions: 5397000049, 5397000050

Technical specifications:
Dimensions: 50 x 70 x 22mm
Weight: 0.028kg

Connections:
X1 10 pin connector: for coin validator connection
X2 6-pin screw terminal:
Out output coin validator dip switches 1-6
ACC output coin validator Pin5 (Out 7 Totalizer)
Inhibit (release coin validator) is switched to GND
+ 12 volts
ACC output coin acceptor channel
GND Ground
GND Ground
DIP switch 6 pin
Out 1 to Out 6

Inhibit negative (GND):
Jumper J1 "NORM" connected
Jumper J2 "NEG" connected
Inhibit positive (+12 volts):
Jumper J1 "REV" connected
Jumper J2 "NEG" open
