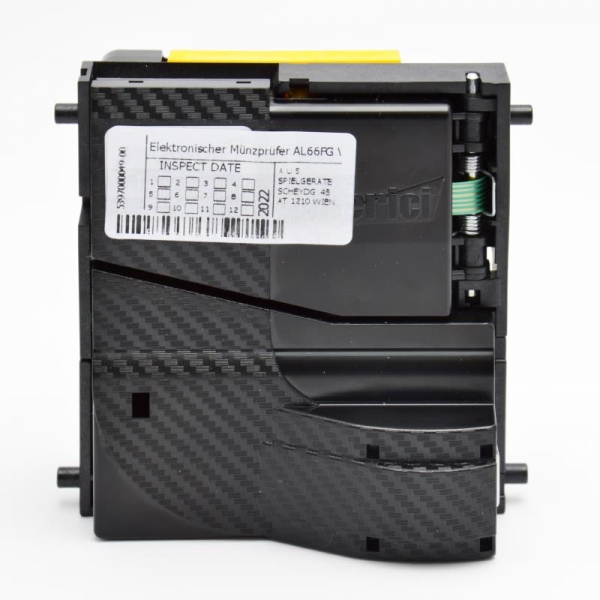

Electronic coin selector AL66 FG Version V
AL66FG electronic coin acceptor has been designed with a specific architecture devoted to ccTalk serial protocol, and likewise efficient when provided in any among the several programmable standard modes. Thanks to its 6 magnetic sensors, and 2 optic pairs, as well as to innovative recognition techniques, it produces 13 sampling parameters (12 dynamic) which assure extreme accuracy in coin discrimination, as well as the systematic reject of counterfeits. AL66FG is realized with high-quality polymers to grant sturdiness and maintain optimal reading conditions. The Italy ccTalk version can be easily switched to AES D.H. 256.
- Innovative identification technology: 6 magnetic sensors, 2 optical detector pairs and 13 identification parameters
- Additional discrimination technologies: MF Inducted Balance and Multi-sample Pulse Induction
- High anti-frauds security level: 4 sequential optic pairs and 2 mechanical devices (one wire-cutter and one thread-ripper) to protect aganist stringing, frauds and tampers
- Available interface: ccTalk, Aes 256 DH, Aes 1024 DH, MDB and Pulse
- Pulse versions programming by two dip-switch rows,Xby PC Kit
- 16 programming channels can ensure extraordinary versatility
- 32 bit ARM micro processor, 128KB flash memory, “automotive” features, reliable even in the most critical environments
- Low power circuits and low power consumption
- Waterproof treatment upon request, for outdoor use It supports smart peripherals (i.e. iS1 intelligent sorter), thanks to the SPI interfacing
- Preset with mini-USB B connection socket
- Coin funnels
- “C” shaped support
- Front reject support
- Bottom reject support
- Adapter boards for electronic coin selectors
- Coin selector Programming Kit
- Universal programming Kit
- Servo PCB MKII
- Tropicalization
TECHNICAL SPECIFICATIONS

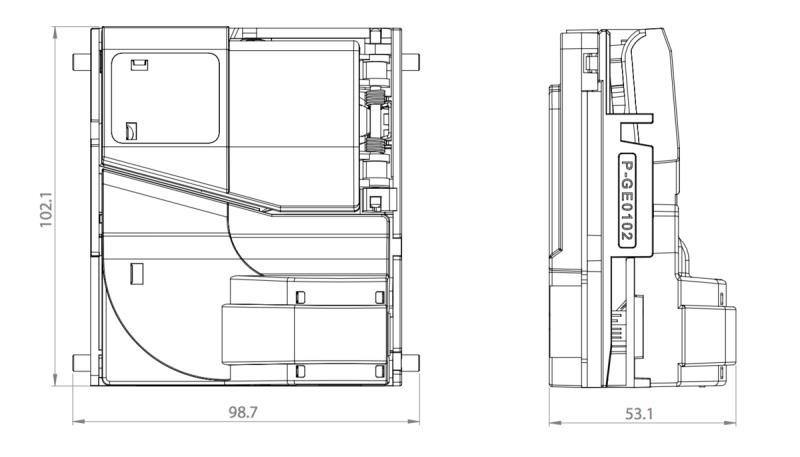

Size 88 x 102 x 54 mm = 3½ “
Weight 212 g
Power supply 12V/24 Vdc (min 8Vdc - max 28 Vdc)
Standby current draw 30 mA
Power save current draw 5 mA
Acceptance current draw max 350 mA (30ms)
Operating temperature 0°C ÷ 60° C (Humidity: 75% non cond. Vers. Standard, 95% vers.Tropicalized)
Channels available 16
Coins diameter 16 ÷ 32 mm
Coins thickness 1 ÷ 3,4 mm
Processing speed 3 coins/sec (V) / 4 coins/sec (S, I)
Interface ccTalk Italy - ccTalk crypto AES DH 256÷1024 (interchangeable) - Pulse/ccTalk modif., MDB, SAS

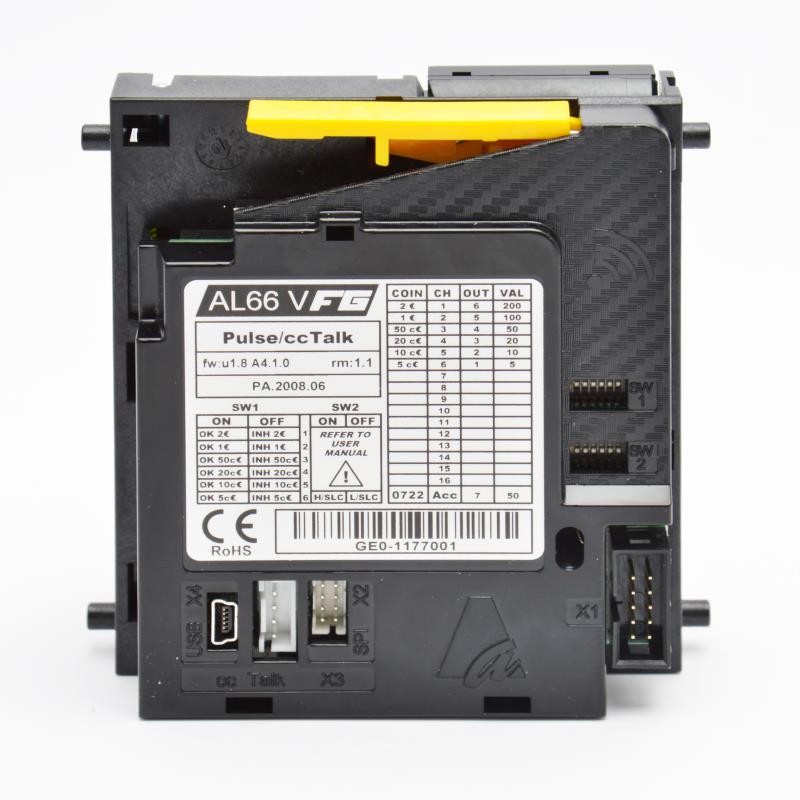

Connector ccTalk 4 pin, IDC Pulse10 pin, SPI 8 pin, mini USB-B (option)
Optional interface NFC TAG
Outputs Max 250 mA/50V (OC, active low)
Inputs Active high 3 Vdc/24 Vdc
