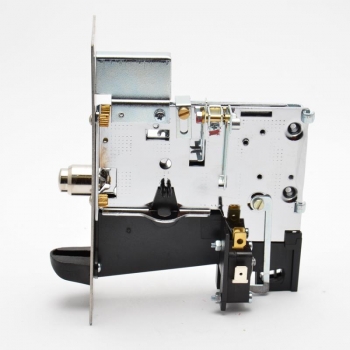

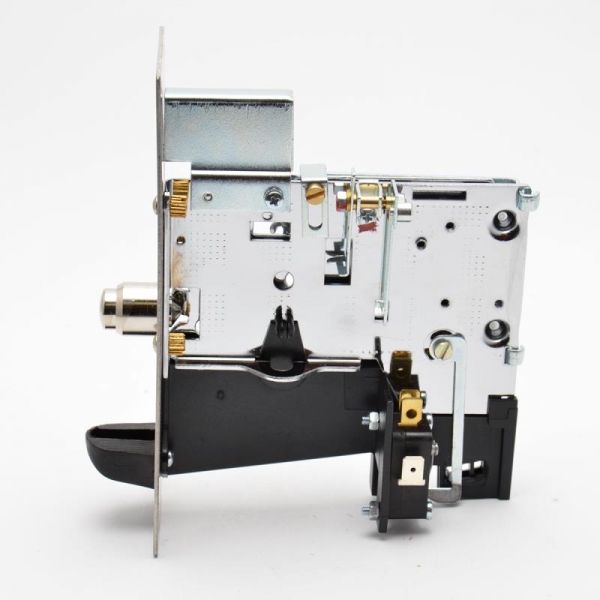

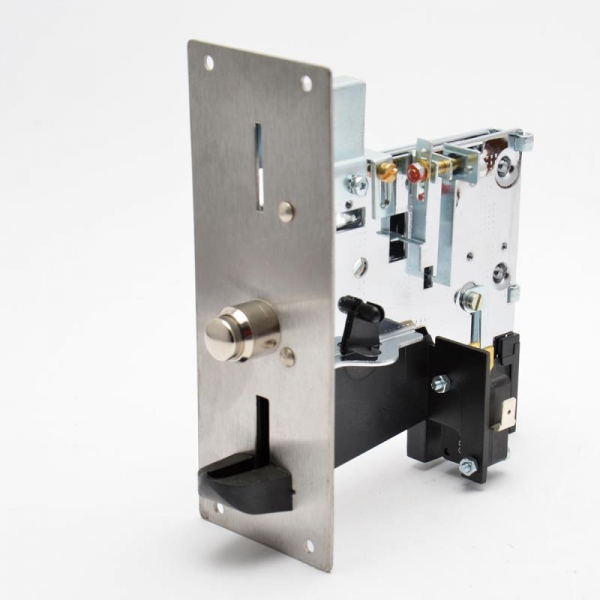

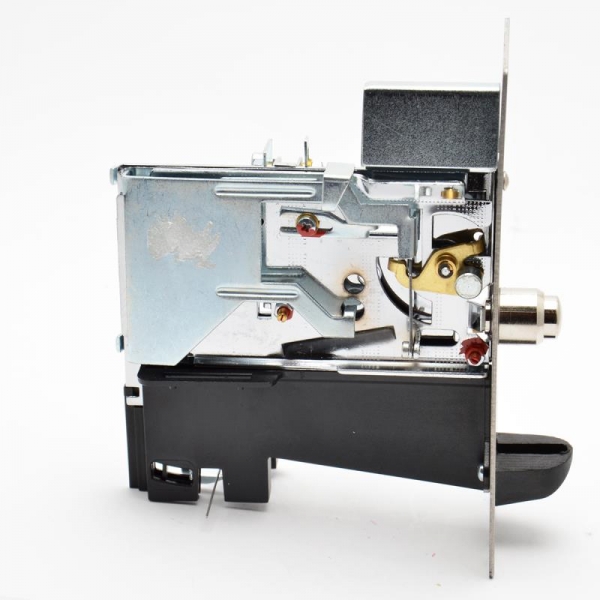

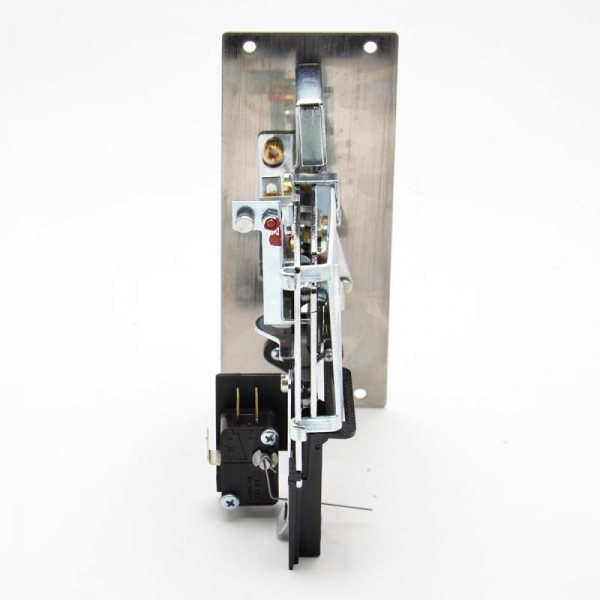

Mechanical coin mechanism with frontplate F6 2.00 Euro

It selects a token or a coin by diameter, weight and thickness with a high reliability. In case of grooved tokens, an additional sorting can be carried out at the front plate slot. Ease of maintenance is ensured by the disassembly of the whole selection group from the front plate.

General characteristics
It selects a token or a coin by diameter, weight and thickness with a high reliability. In case of grooved tokens, an additional sorting can be carried out at the front plate slot. Made of steel and brass for outdoor applications.It is assembled on standard plates, type F6 in thermosetting material. Extra reliable, it is provided with 9 standard controls: thick-ness, weight, rim, washer lock, magnetic control, antishock, 3 diameter controls.Options Stop electromagnet with coin holding device, if provided.

Option:
Available in F1 or F6 front plate versions. Available with or without stop coil at different power supplies.

Technical characteristic:
Accepted 1 token or 1 coinø token/coin (mm) min 17 - max 32

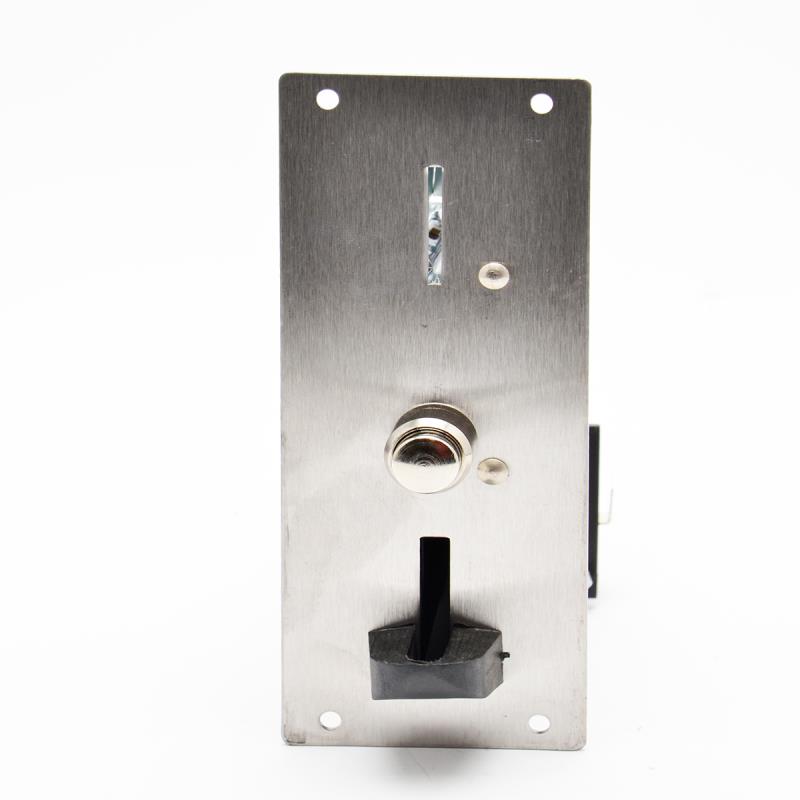

Front plate size F6 Version: 60mm x 152mm mounting holes:
Distance: H: 140 mm B: 40 mm
Diameter: D: 4 mm
coinswitch
Assembly on front plate (the coin mechanism cannot work with inclined axes) Selection balance and multiple control channel
