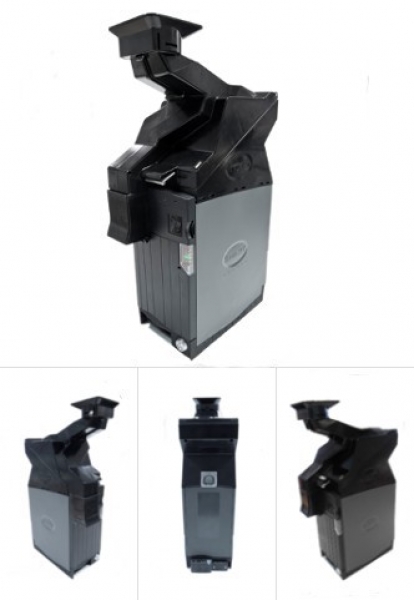

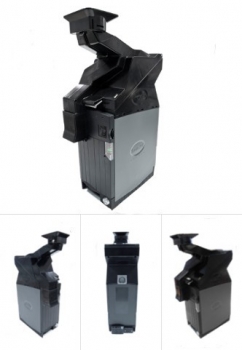

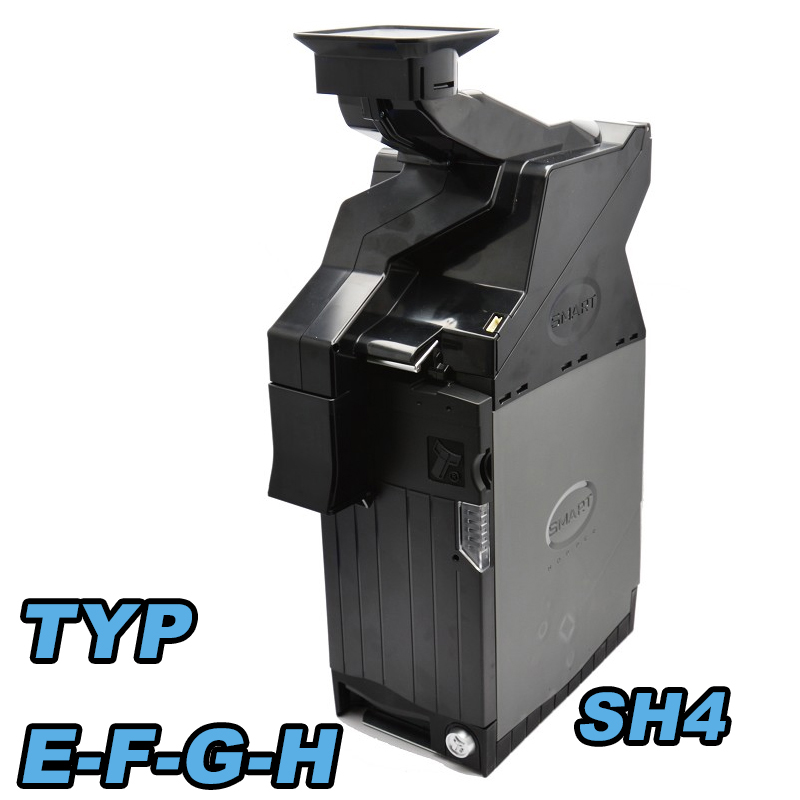

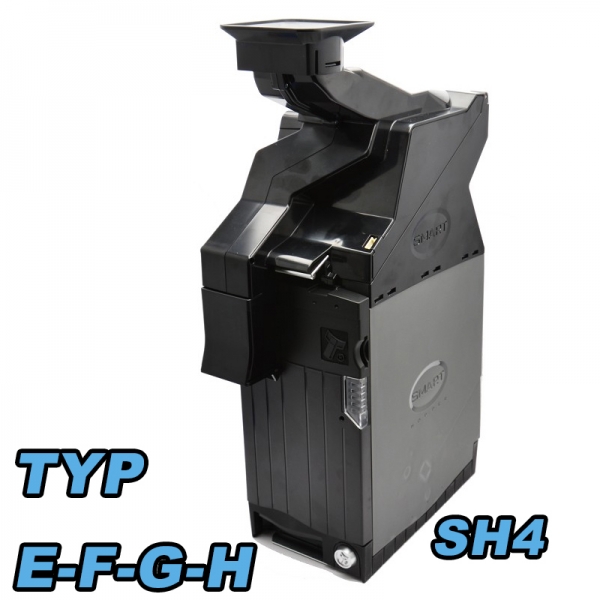

Smart Coin System

The SMART Coin System is a state of the art bulk coin validator, mixed coin hopper and recycler in one. The unit validates, discriminates and stores mixed coins, eliminating coin starvation & the need for multiple hoppers. With a market leading coin hopper capacity and fully audited, efficient refills the SMART Coin System is designed to eliminate coin starvation and significantly reduce operator collection costs. Operating at a market leading 12 coins per second the SMART Coin System improves operator cashflow, significantly reducing collection costs.
Features
- State of the art bulk coin validator, hopper & recycler
- Eliminates coin starvation
- Market leading coin capacity, acceptance and payout speed
- Lowest cost of ownership
- High security - multi frequency sensing technology

Technical Specification
Power Requirements: 24V
Standby:
200 mA
Running: 3 A
Peak: 6.5 A
Payout Speed Up to 12 coins per second
Coin Capacity: 1500 (£1) 1300 (£1) 800 (£2) Mixed Coin Capacity €2x200+€1x750+50cx500
Protocols: SSP ccTalk
Interfaces: USB Open collector

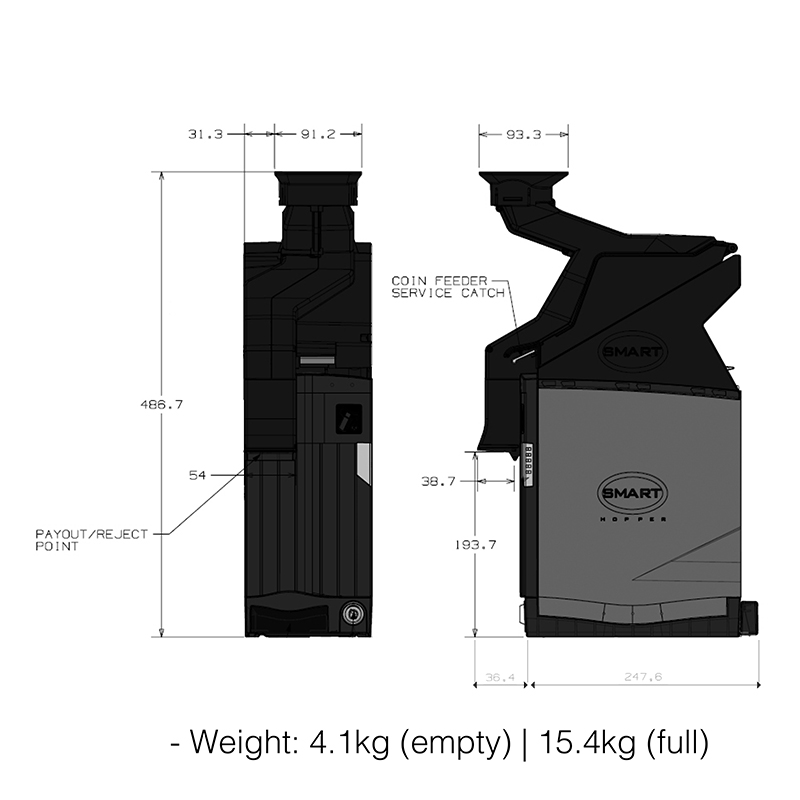

Coin Dimensions Diameter: 16 - 28.5 mm Thickness: 1.65 - 3.2 mm
MCBF 100,000
Weight 4.1 kg
