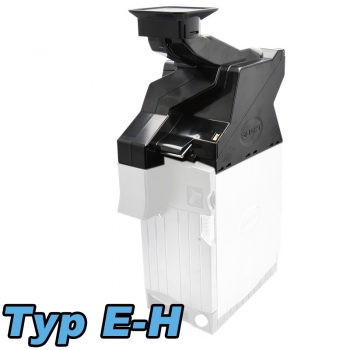

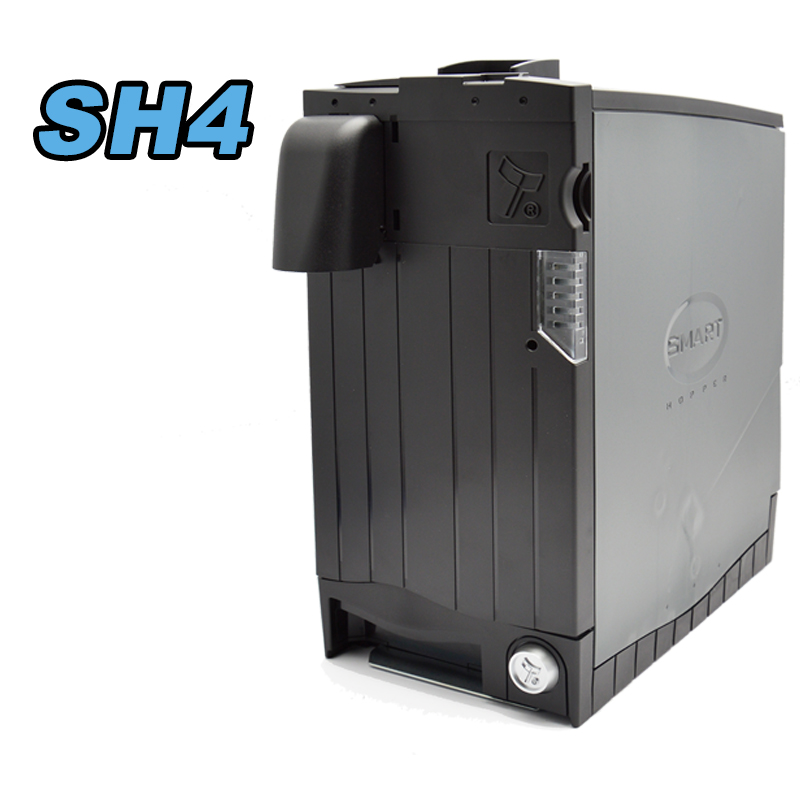

SMART Hopper SH4 Typ A-E-F-G-H Coins d =18-28.5mm t =1.6 - 3.2 mm

Operating at an industry leading 12 coins per second the SMART Hopper will revolutionize coin payment technology.
The host machine can set the desired coin values needed for payout and transfers all other values straight to the cashbox.
Prior to collection the SMART Hopper transfers the excess coins to the cash box, leaving the desired float in the SMART Hopper. This self-regulating float ensures the host machine is able to payout as necessary whilst easing operator refill and collection.
The SMART Hopper pays out higher than conventional hoppers so customers no longer have to reach down to retrieve coins. This higher payout increases security and allows for a change in the design of the machine.
With inbuilt security features such as eSSP, a single coin entry point and modulated coin exit sensor, operators can have faith in the SMART Hopper’s anti fraud mechanisms.
Ideal for all coin payment applications the SMART Hopper is recommended for AWP, Gaming, Self Serve & Retail, Vending, Kiosk, Casino, Ticketing and Parking applications.
“A high speed, high security multi coin hopper the SMART Hopper has the ability to payout coins at a speed of 12 coins per second from up to 11 different denominations. With its self regulating float and large volume coin capacity the SMART Hopper sets new standards for coin payment technology.”
Compatible with Smart Coin & Coinfeeder & Smart Hopper SH3

SMART Hopper Technical Data

- Compatible with Smart Coin & Coinfeeder & Smart Hopper SH3
- 1500 coin capacity (based on €1 coin)
- 12 coins per second

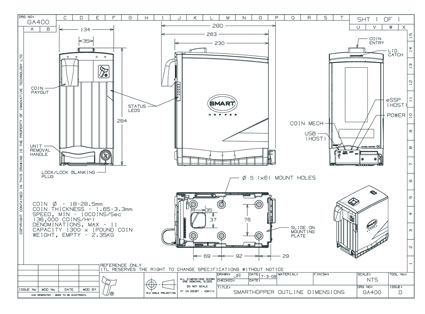

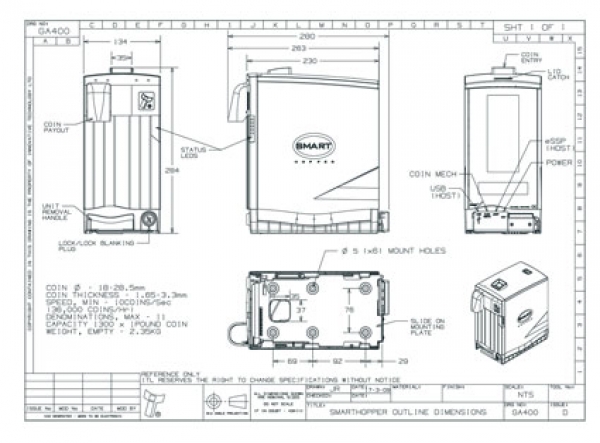

- Compact dimensions: 280 x 230 x 134 mm
- Weight: 2.4kg empty, 13.7kg full
- Power supply: 24V /5AMP
- eSSP protocol
- Secure exit sensor

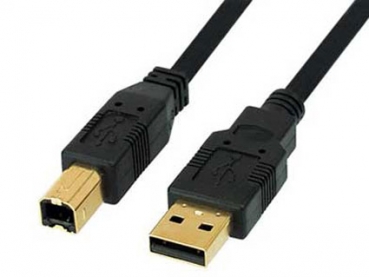

- USB on board
- SD card slot
- Accepts coins 18 to 28.5mm in diameter
- Accepts coins 1.6 to 3.2mm thickness

Depending on the currency a different Smart Hopper Hardware type is requried.
Contact our service team for further information is available on request.
