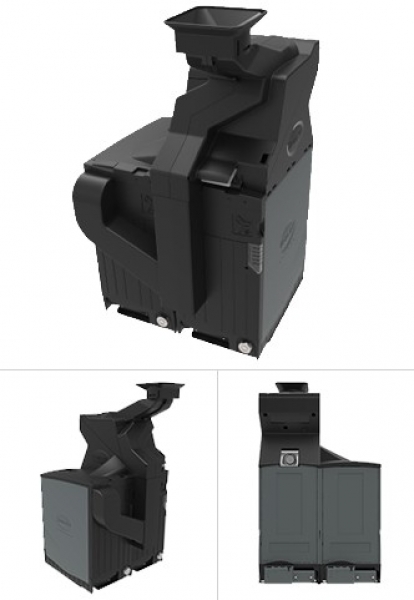

Twin Smart Coin System

The Twin SMART Coin System combines a state of the art bulk coin validator, 2 x mixed coin hoppers & recyclers in one. The unit validates, discriminates and stores mixed coins, eliminating coin starvation & the need for multiple hoppers. With a market leading coin hopper capacity, acceptance and payout speed the Twin SMART Coin System is designed to eliminate coin starvation and significantly reduce operator collection through highly efficient refills. Operating at market leading speeds of up to 24 coins per second the Twin SMART Coin System improves operator cashflow, significantly reducing collection costs.

Features
- State of the art bulk coin validator, 2 hoppers & 2 recyclers
- Eliminates coin starvation
- Market leading coin capacity, acceptance and payout speed
- Lowest cost of ownership
- High security - multi frequency sensing technology

Technical Specification
Power Requirements: 24V
Standby:
200 mA
Running: 6 A
Peak: 13 A
Payout Speed Up to 24 coins per second
Coin Capacity:
2800 (€1)
2100 (£1)
1600 (£2)
Mixed Coin Capacity €2x500+€1x1400+50cx 600
Protocols:
SSP
ccTalk
Interfaces:
USB with IF17
Open collector
Coin Dimensions Diameter:
16 - 28.5 mm Thickness: 1.65 - 3.2 mm
MCBF 100,000
Weight 4.1 kg

Downloads

Produktbroschüre Twin Smart Hopper (684.64 KB)

User_Manual_SMART_Coin_System_GA02085_v1.9 (4.31 MB)
