Evolution Hopper

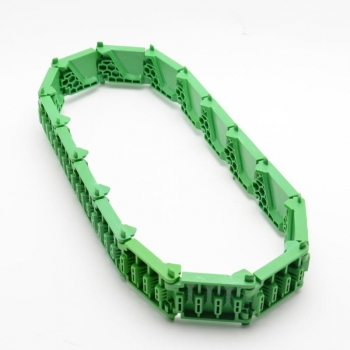

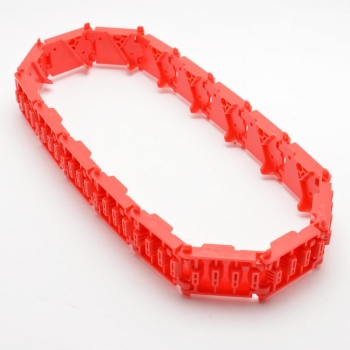

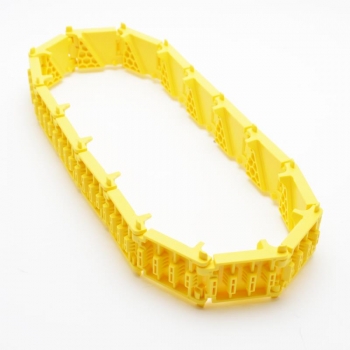

This belt driven hopper has been re-engineered and the result is an improvement over existing belt driven hoppers in its performance and maintenance. The unique concept provides a single build type hopper that is suitable for 95% of world’s coins and tokens without needing adjustments. The Evolution Hopper is suitable for many applications such as: Vending, Parking, Change, Amusement and Gaming machines. Made from extremely strong, wearing resistant plastics in combination with state of the art electronics resulting in low cost of ownership. Large DC motor in combination with electronic motor control board for reduced friction and motor noise. Optic board is easily accessible by removing the electronic control board from outside the hopper. Connector can be easily changed from front to back by just loosening two screws and pulling the cable with connector in its position. (reduced inventory for manufacturers that use both styles) Standard parallel interface.

Features:
Modular space –efficient system
High capacity >1200 coins of 1 Euro
Pay out speed 4 coins per second
Built-in agitator to prevent coin jams
Hopper is protected by anti-jam electronics
Large motor reduces motor noise
High quality materials for long trouble free operation
Easily removable and accessible electronics

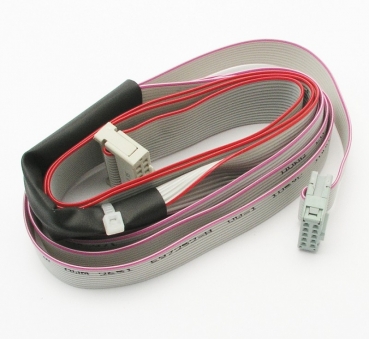

Hopper connector can easily be changed from front to back
Low and high level sensing
Competitively priced
Low cost of ownership
Shutter Version:
The function of the added shutter is 2 fold:
First it prevents spilling any coins through the coin exit port, in case a hopper is moved in or out of a machine.
Secondly, it prevents the insertion of any tools, that could be used to tamper the opto-sensor inside the coin exit port, that could cause any fraud.
As soon as the hopper starts paying coins, the shutter opens, and closes again when a payment is finished.
All other features and dimensions are the same as the normal Evolution hopper range.

Variations:

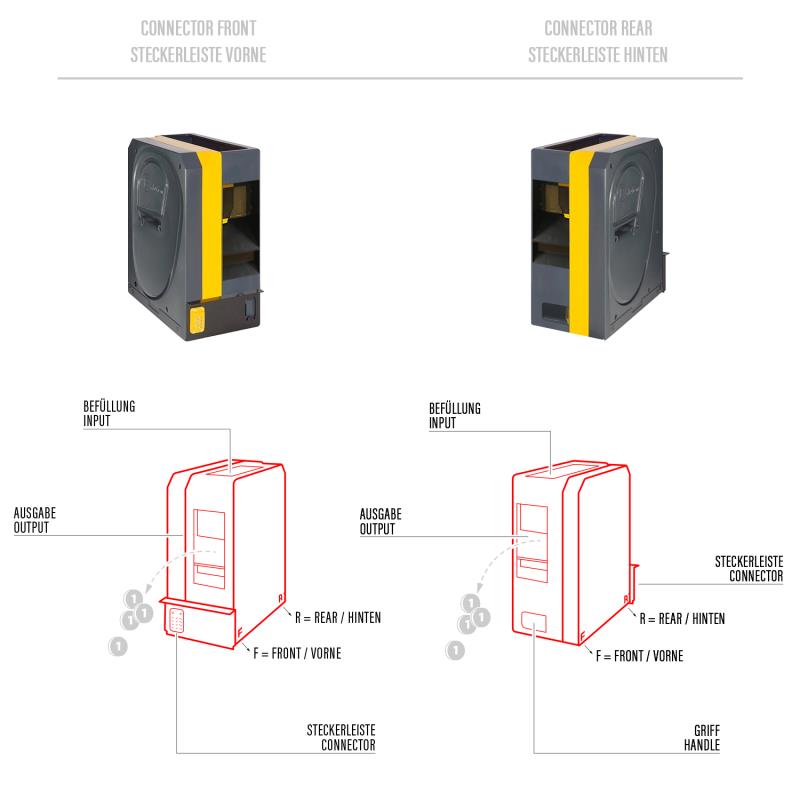

Connector:

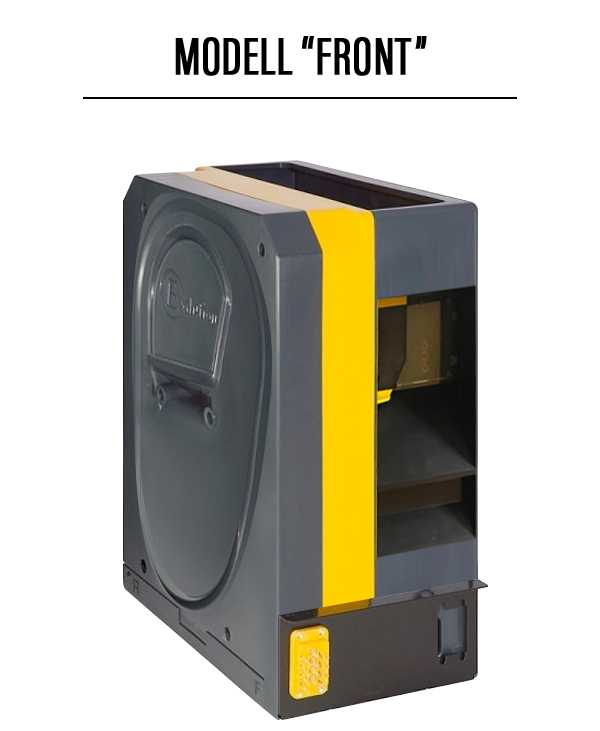

Front = same side as coinexit

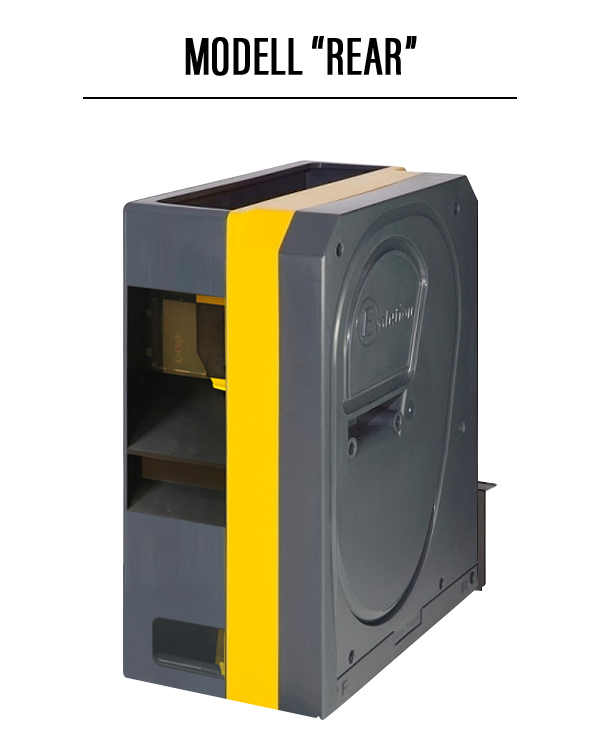

Rear = oposite of coinexit
coins/diameter
20.00 - 30.00 mm
19.00 - 26.40 mm
16.25 - 20.90 mm
Interface:
parallel Mode 0-Mode 1 - Mode 2
parallel shutter
CC-talk non encrypted
CC-talk encrypted
CC-talk ITA

Technical data:
Capacity:
2,- Euro 25.75/2,20 approx. 1000 coins
1,- Euro 23.25/2,35 approx. 1200 coins
0,5 Euro 24.25/2,40 approx. 1100 coins
Berechung Hopperkapazität:
1,200.000
Capacity = Hopper volume/Coin volume = TT x D² D = Coin diameter (mm)
-------- x TK T = Coin thickness (mm)
4
Lifetime: up to 3 Millionen coins
Operation temperature: 0 bis 60 ° C
Mounting: +/- 3° of vertical in any direction
Voltage:
24 VDC min. 18 VDC max. 26 VDC
Current (typical):
idle 40 mA
payout 0,2 Ampere (empty)
payout 0,7 Ampere (full)
payout 2,5 Ampere (surge)
Dimension:
HxWxD 286 x 226 x 126 mm
DO NOT use the hopper in an explosive atmosphere

Versions:
EV13000
EV12000
EV14000
EV11000
EV15000
EV03000
EV02000
EV04000
EV01000
EV05000
EV13003
EV12003
EV14003
EV11003
EV15003
EV03003
EV02003
EV04003
EV01003
EV05003
EV13004
EV12004
EV14004
EV11104
EV15004
EV03004
EV02004
EV04004
EV01004
EV05004
